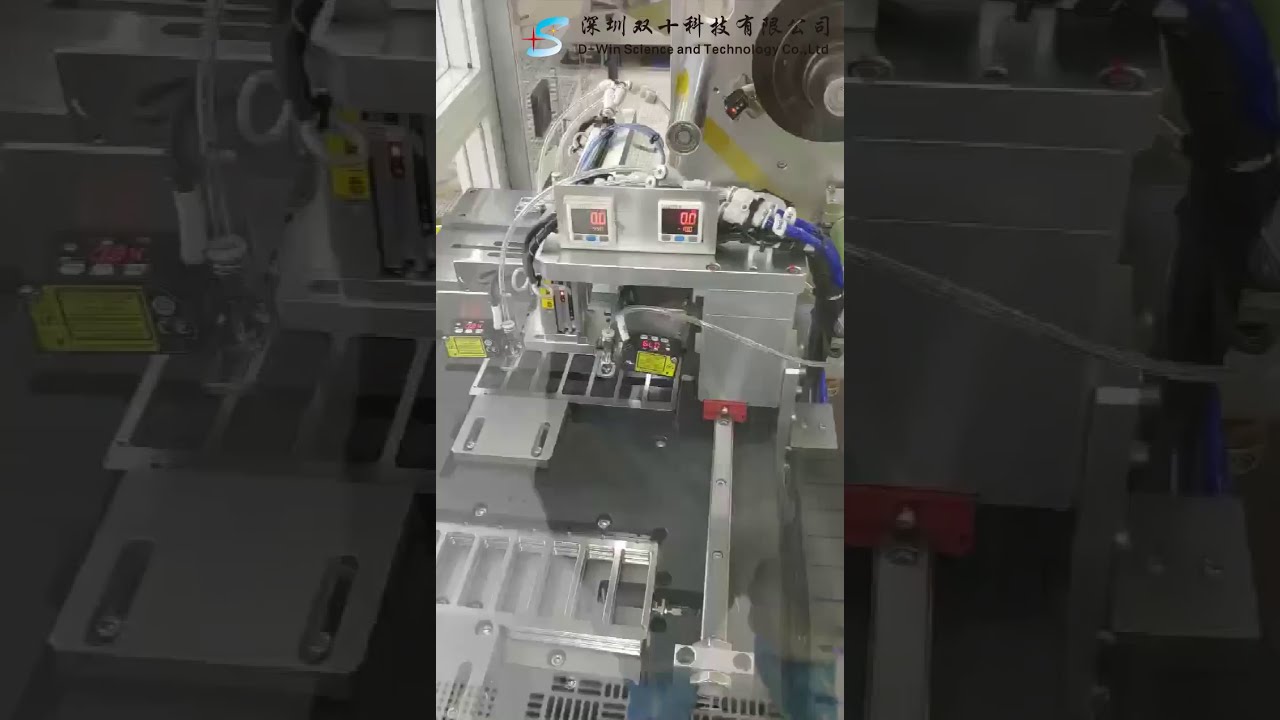

Скачать или смотреть Automatic high temperature glue machine High temperature adhesive tape attaching machine CCM use

CCM camera module use Automatic high temperature glue machine High temperature adhesive tape attaching machine High temperature adhesive tape sticking machine

Product Description

In the prior art, in the process of processing the lens of mobile phone, there is a process of adhesive paper sticking to each module, usually using high-temperature adhesive paper. The current high-temperature adhesive machine is a separate machine, and our machine can realize integration.Our machines can effectively combine rubber paper feeding, steel sheet feeding, laminating mechanism, cutting device and spring clip feeding mechanism.

Through the steel sheet feeding mechanism, the steel sheet feeding is completed, and the flatness detection and sorting is completed by high precision sensor.Adhesive paper attaching mechanism attaches high temperature adhesive paper to the upper end of the steel sheet, the position can be set.

After attaching, the steel sheet is divided by cutting film mechanism and stored in the cartridge.

Equipment application and industry: Mainly used in CCM camera module.

Features:
High efficiency, overall UPH 600pcs

High precision, the precision of repeated gluing is 0.1mm, and the distance between glue and plate edge after cutting is 0.2mm

High integration and small space occupation

Technical Parameters:
1.General range of steel sheet Length：150-260mm
Width：70-95mm;Thickness：0.5-2.0mm
2.Model DW - PI Fitting-05
3.General size of high temperature adhesive Internal diameter：70-85mm
External diameter：100-120mm;; Width：95mm
4. Equipment cleanliness level Grade 100
5. Yield 99%
6.Height of operation table 950±50MM
7.Machine Dimensions L1300*W9000*H1800mm
8.Air source specification 0.5MPa
9. Power specifications AC220V, Total power：1.5KW
