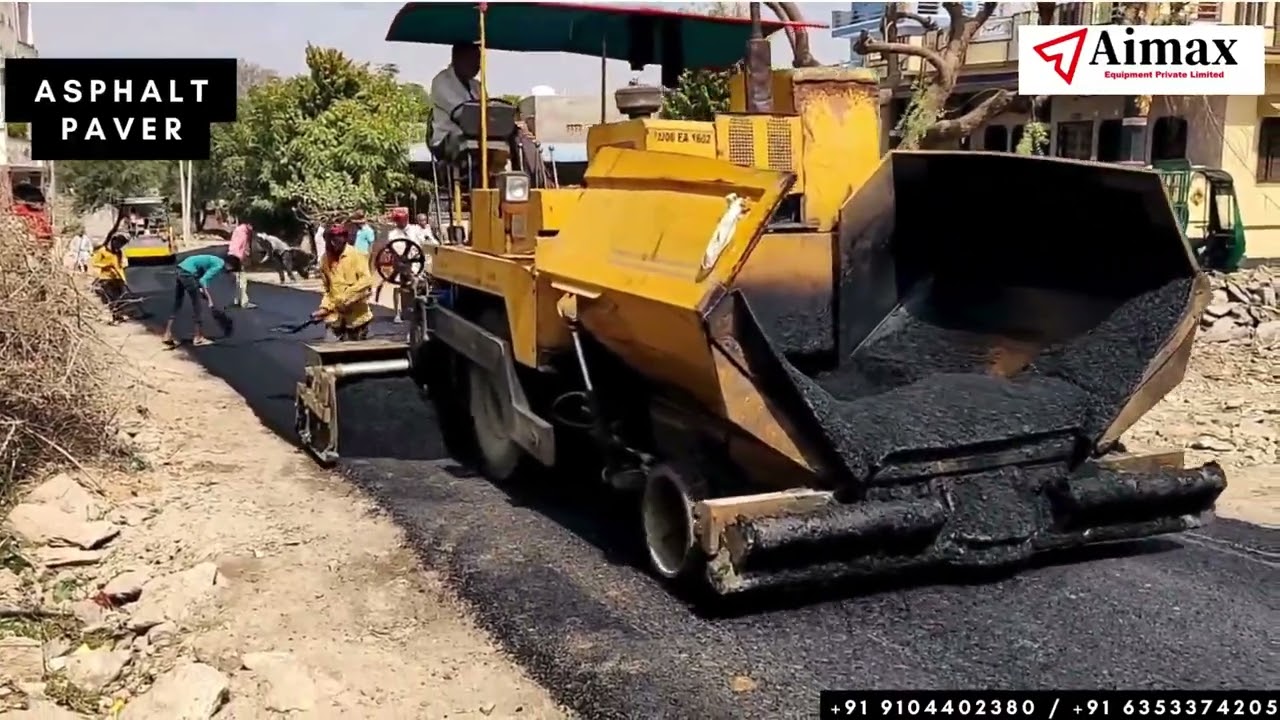

The reliable and durable ASP 550 Wheeled Hydrostatic Sensor Paver comes with a variety of features that enable quality, productivity and easy operation. Among them: hydrostatic drive, fingertip controls, a swinging console, a hydraulically extendible screed with vibration and tamping, and best-in-class sensors. Double-axle design provides greater stability on difficult terrains, with zero flexing – even at the widest paving widths.



The ASP 550 has a basic screed width of 2.5 metres and is hydraulically extendible up to 4.5 metres. Bolt-on mechanical extensions, on either side of the screed, offer a paving width of 5.75 metres. Grade and slope controls are extremely precise. Grade control accuracy levels are within a millimeter, while slope control is within 0.1 per cent.



The pavers come equipped with sensors. Customers choose from the German MOBA system, string sensors or ultrasonic sensors. The result of all these useful features: an impressive paving performance along with excellent compaction values.

Powered with Kirloskar / Ashok Leyland Engine
Chain – Reynolds Diamond
Hydraulic Cylinder – Tafe / Dental
Screed Plate Hardox – 400 S.S.
Steering unit sauer Danfoss
Auger diameter – 300 mm (NH hard material)
Tyre – Ceat / JK
Battery – Amron / Exide
Priority Valve Provision
