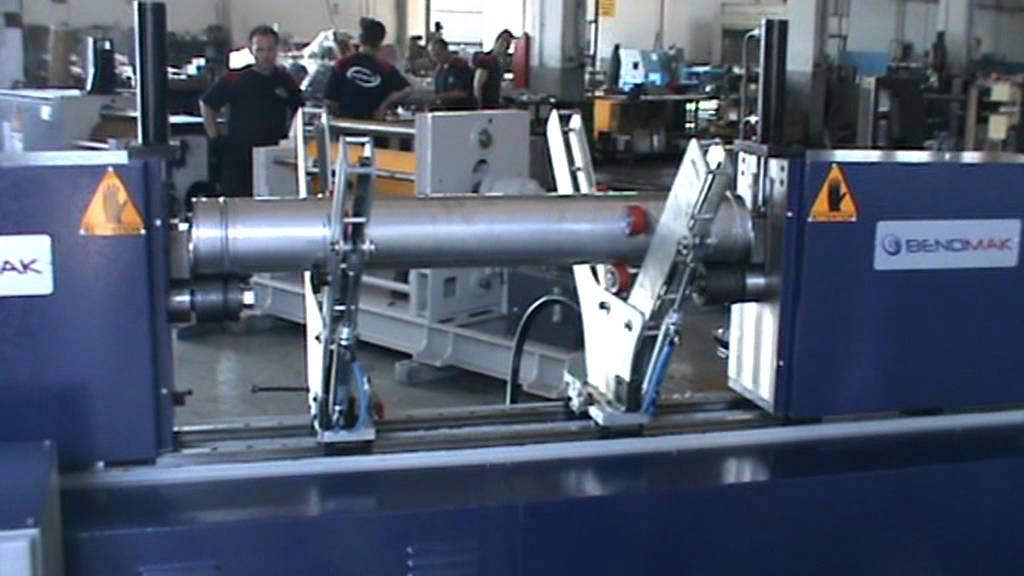

Скачать или смотреть DHSWM 400 Doppelspindel Bördelmaschine

MODEL : DHSWM 400 DOUBLE HEAD BORDERING END FORMING MACHINES

Technical Specs :
 Max. Thickness : 2.0 mm (Standart steel)
 Minimum Working Length : 500 mm
 Maximum Working Length : 1250 mm (Changeable)
 Capacity : 100mm-300mm
 Weight : 850 kg
 Motor Power : 3.5 kW
 Size of the machine : 1250*3000*1650, WxLxH

Standart Equpments :
 Machine body manufactured of St. 52 steel
 Rolls driven by electric motor and gearbox in the gear system
 Special fixture to mount on the sheet metal
 1 set of rolls (4 each)
 Independent foot pedal
 CE norms
 Required electricity
