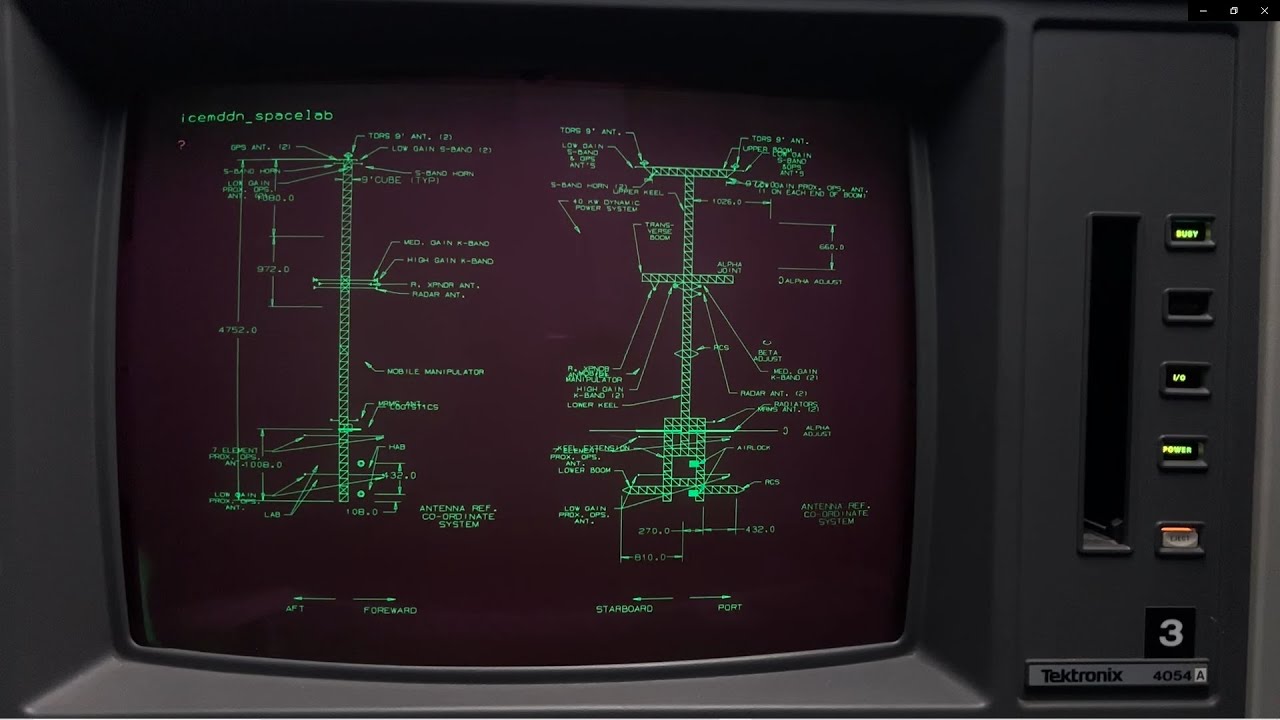

I wanted to display these early 1980s European Space Agency Spacelab drawings on my 4054A vector graphics computer using my GPIB Flash Drive to supply the data in Tektronix R12 Graphics Enhancement format instead of their original PLOT10 format.

I converted the files with a BASIC program I wrote on the 4054A - now all the files on the Flash drive can be displayed on any Tektronix 4051 / 4052 / 4054 computer without needing a PC and Tektronix RS-232 serial interface.

The graphics are being displayed at approximately1000 vectors per second!

Credits:
rricharz Tek4010 project:
https://github.com/rricharz/Tek4010/t...

Nick Glazzard's Spacelab 4014 ICEMD plot files with his file comments:

ASSY (assy.plt) (9/17/82 - US date order) — A 3D view of some single part with rear facing surfaces removed.

ASSYSIDE (assyside.plt) (3/29/83) — Another view of ASSY.

GROWTH KEEL (growth_keel.plt) (8/14/84) — Plan and side view of the space station.

IOC SOLAR DYNAMIC (icemddn_spacelab.plt) (7/20/84) — Spacelab
