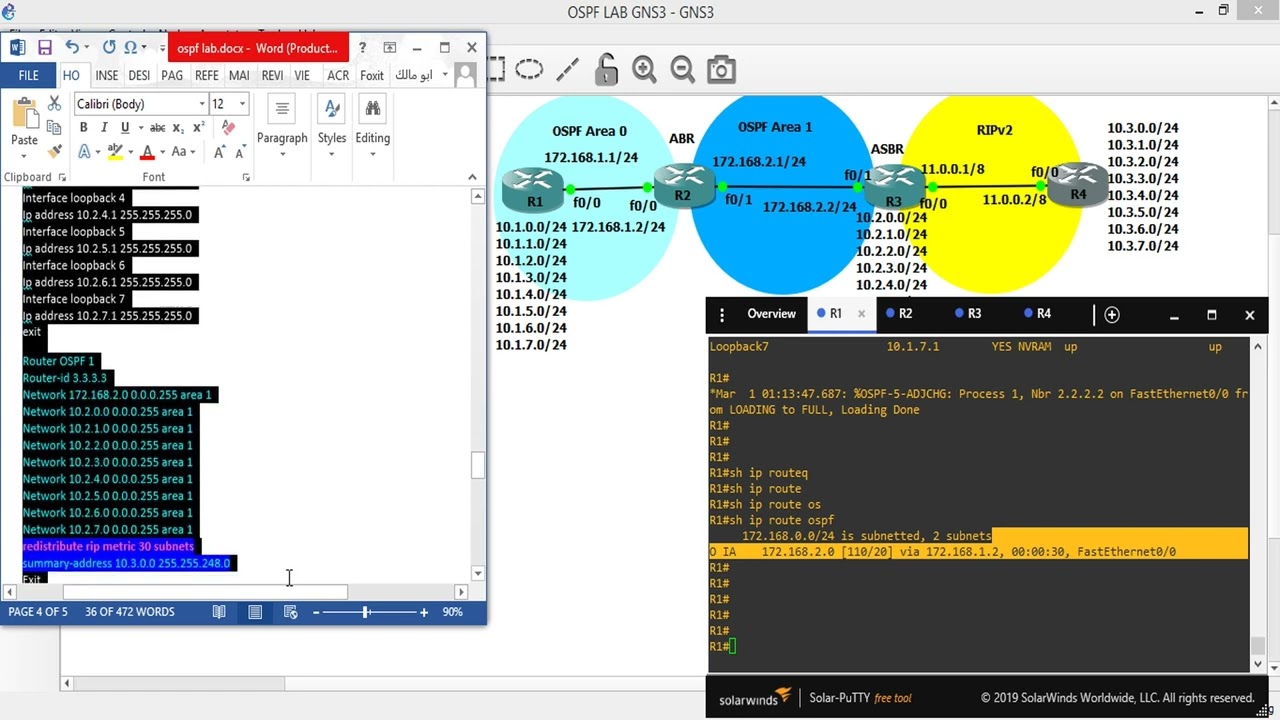

OSPF LAB configuration

ON R1
Conf t
Int fast 0/0
Ip address 172.168.1.1 255.255.255.0
No shut
Interface loopback 0
Ip address 10.1.0.1 255.255.255.0
Interface loopback 1
Ip address 10.1.1.1 255.255.255.0
Interface loopback 2
Ip address 10.1.2.1 255.255.255.0
Interface loopback 3
Ip address 10.1.3.1 255.255.255.0
Interface loopback 4
Ip address 10.1.4.1 255.255.255.0
Interface loopback 5
Ip address 10.1.5.1 255.255.255.0
Interface loopback 6
Ip address 10.1.6.1 255.255.255.0
Interface loopback 7
Ip address 10.1.7.1 255.255.255.0
Exit

Router OSPF 1
Router-id 1.1.1.1
Network 172.168.1.0 0.0.0.255 area 0
Network 10.1.0.0 0.0.0.255 area 0
Network 10.1.1.0 0.0.0.255 area 0
Network 10.1.2.0 0.0.0.255 area 0
Network 10.1.3.0 0.0.0.255 area 0
Network 10.1.4.0 0.0.0.255 area 0
Network 10.1.5.0 0.0.0.255 area 0
Network 10.1.6.0 0.0.0.255 area 0
Network 10.1.7.0 0.0.0.255 area 0
Exit
Exit

ON R2
Conf t
Interface fast 0/0
Ip address 172.168.1.2 255.255.255.0
No shut

Interface fast 0/1
Ip address 172.168.2.1 255.255.255.0
No shut
Exit

Router OSPF 1
Router-id 2.2.2.2
Network 172.168.1.0 0.0.0.255 area 0
Network 172.168.2.0 0.0.0.255 area 1
Area 0 range 10.1.0.0 255.255.248.0
Area 1 range 10.2.0.0 255.255.248.0
Exit
Exit

ON R3
Conf t
Interface fast 0/1
Ip address 172.168.2.2 255.255.255.0
No shut

Interface fast 0/0
Ip address 11.0.0.1 255.0.0.0
No shutdown

Interface loopback 0
Ip address 10.2.0.1 255.255.255.0
Interface loopback 1
Ip address 10.2.1.1 255.255.255.0
Interface loopback 2
Ip address 10.2.2.1 255.255.255.0
Interface loopback 3
Ip address 10.2.3.1 255.255.255.0
Interface loopback 4
Ip address 10.2.4.1 255.255.255.0
Interface loopback 5
Ip address 10.2.5.1 255.255.255.0
Interface loopback 6
Ip address 10.2.6.1 255.255.255.0
Interface loopback 7
Ip address 10.2.7.1 255.255.255.0
exit
Router OSPF 1
Router-id 3.3.3.3
Network 172.168.2.0 0.0.0.255 area 1
Network 10.2.0.0 0.0.0.255 area 1
Network 10.2.1.0 0.0.0.255 area 1
Network 10.2.2.0 0.0.0.255 area 1
Network 10.2.3.0 0.0.0.255 area 1
Network 10.2.4.0 0.0.0.255 area 1
Network 10.2.5.0 0.0.0.255 area 1
Network 10.2.6.0 0.0.0.255 area 1
Network 10.2.7.0 0.0.0.255 area 1
redistribute rip metric 30 subnets
summary-address 10.3.0.0 255.255.248.0
Exit

Router rip
Ver 2
No auto
Network 11.0.0.0




ON R4
Conf t
Interface fast 0/0
Ip address 11.0.0.2 255.0.0.0
No shutdown

Interface loopback 0
Ip address 10.3.0.1 255.255.255.0
Interface loopback 1
Ip address 10.3.1.1 255.255.255.0
Interface loopback 2
Ip address 10.3.2.1 255.255.255.0
Interface loopback 3
Ip address 10.3.3.1 255.255.255.0
Interface loopback 4
Ip address 10.3.4.1 255.255.255.0
Interface loopback 5
Ip address 10.3.5.1 255.255.255.0
Interface loopback 6
Ip address 10.3.6.1 255.255.255.0
Interface loopback 7
Ip address 10.3.7.1 255.255.255.0
exit

Router rip
Ver 2
No auto
Network 11.0.0.0
Network 10.3.0.0
Exit
