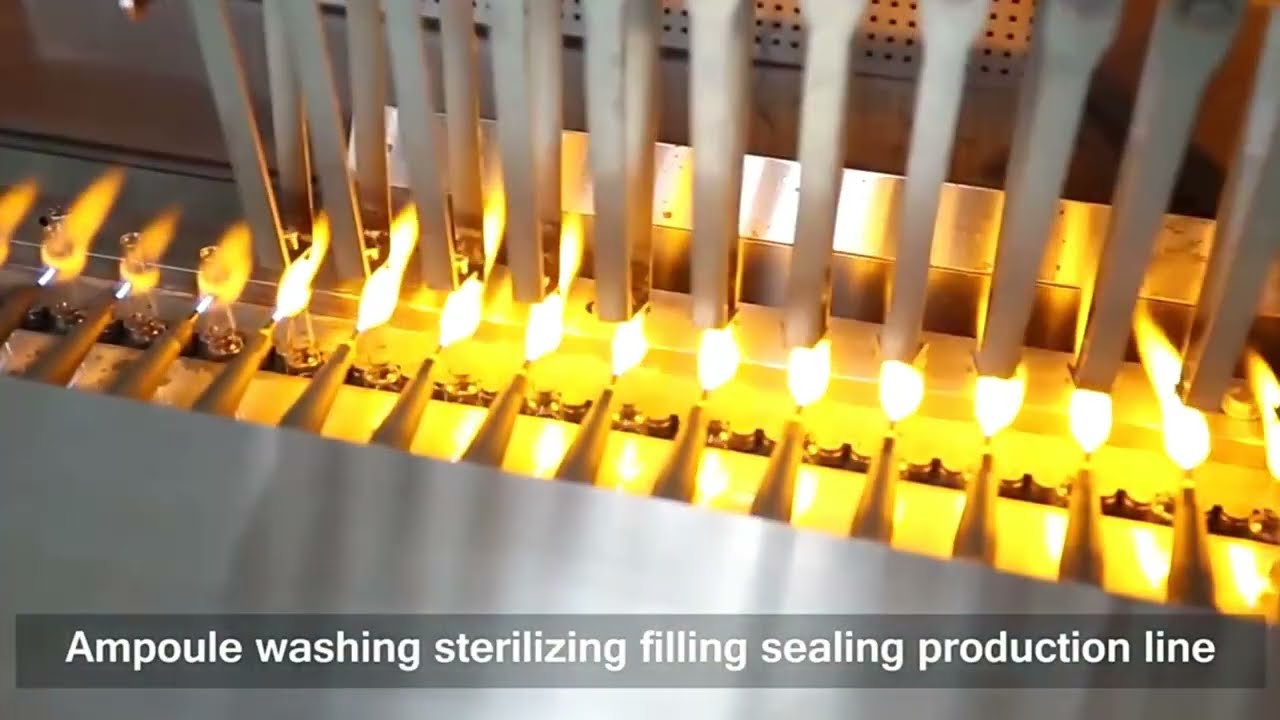

Скачать или смотреть Ampoule washing sterilizing filling sealing production line

Ampoule filling and sealing production line is composed of ultrasonic bottle washing machine, dryer sterilizer and ampoule filling and sealing machine. It can complete spraying water, ultrasonic cleaning, air & water flushing of inner and outer wall of ampoule bottle, preheating, drying and sterilization, heat source removing, cooling, (nitrogen pre-filling), filling, (nitrogen post-filling), ampoule sealing and other complex functions, realizing automatic production of the whole process. Each machine can be used separately or in linkage line. The whole line is mainly used for ampoule injections filling in pharmaceutical factories and the general type can also be used for antibiotic vial injection filling or powder filling.
Parts 1: Ultrasonic Washing Machine
The bottle washing machine adopts mechanical hands to clamp the bottles ,suitable for 1-20ml Ampoule bottle.The Water gas spray needles adopts the reciprocating tracking insertion mode for bottle washing featured by good washing effect and energy saving ,it is also provided with a device that prevents the needle holder from shaking to enhance the accuracy of the spray needles ,so that cross contamination is avoided and GMP requirement are met.
The buffer block is installed before the bottle feeding screw of the bottle washing machine to protect the screw and reduce bottle breakage.Bottle discharging is realized by the integral imported synchronous belt that is connected to the bottle pushing block and conveys Vials with stable and reliable running.
Parts 2: Sterilization Tunnel
Marya Glass Ampoule liquid bottle Filling machine And Sealing Machine Production Line
Adopts hot air circulation heating with even temperature and energy saving.
The oven is provided with the function of protecting against sudden power-off to ensure safe running .
can be equipped with the differential pressure automatic balancing and regulating system to reduce the problems of deviation at the high temperature section caused by unbalanced differential in the room and oven ,temperature rise in the filling room ,washing and drying room,etc .is provided with DOP inspection ports(including inspection ports for wind pressure,wind speed and dust particles) ,The Cooling section in the oven is provided with the sterilization function,Conveying belt can be equipped with ultrasonic and CIP cleaning systems,The oven cavity can be subject to all-round ,multi -angle high pressure water washing.
Parts 3: Filling and Sealing Machine
The filling machine adopts the horizontal synchronous belt bottle conveying mode ,featured by high speed,accurate bottle distribution and convenient replacement of parts.
Product Filling Head
6 Head
8 Head
10 Head
12 Head
16 Head
Suitable Size
1-20ml(ampoule)
1-10ml(ampoule)
Production Capacity(pcs/h)
6000-16000 8000-21000 10000-24000
12000-30000 16000-36000
Power Supply
380V 50HZ
Power Capacity(KW)
78 78 80 90 90
Total Weight(KG)
8900 8900
9400 9700 10100
Overall Size(mm)
9100*2200*2450 9100*2200*2450
9260*2200*2450
9910*2200*2450 10042*2200*2450
