LIPU ZHAGA LIGHT CONTROLLER PHOTOCELL
ZHAGA LIGHT CONTROLLER
ZHAGA PHOTOCELL
LIPU ZHAGA
LIGHT CONTROLLER PHOTOCELL

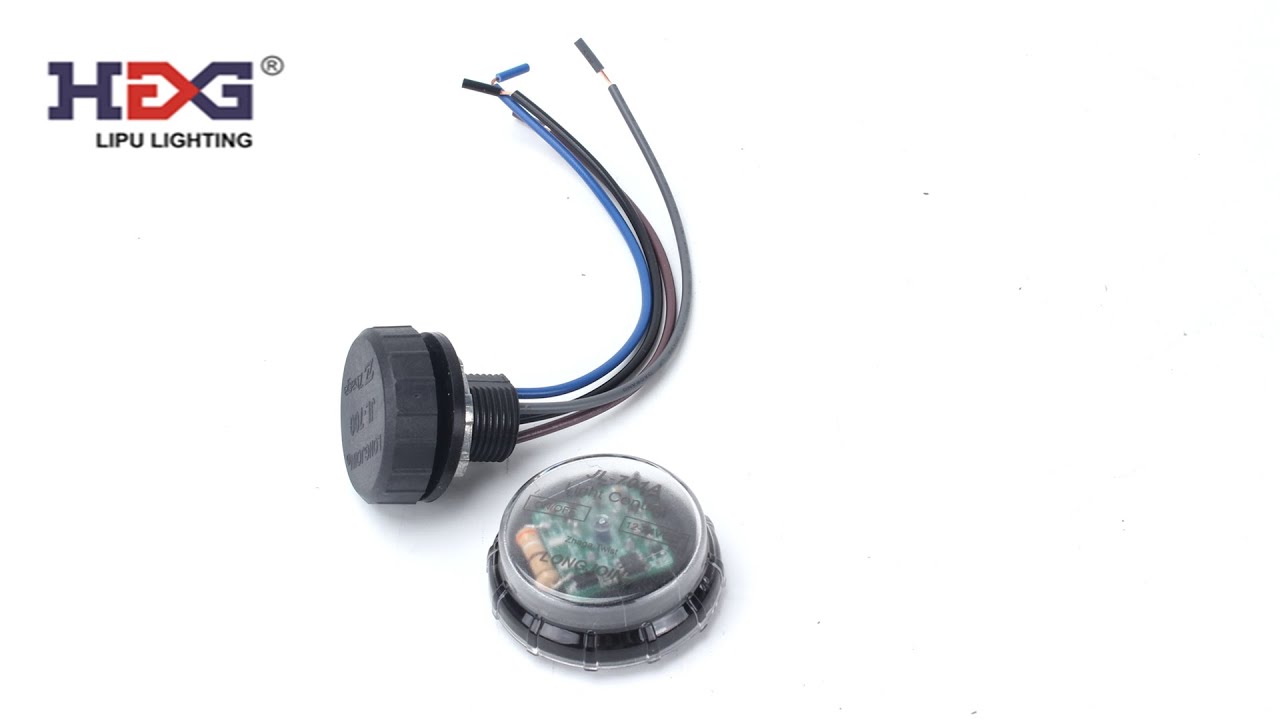

Zhaga version (4P)
LP-7 serise products,including LP-700 receptacle and accessories, to offer a Zhaga Book 18 regulated interface for easier way to develop standard devices used for roadway lighting, area lighting, or occupancy lighting, etc.

DALI CONFIGURATIONS
Contacts rating:1.5A, 30V(24V typical)
Meets 10kV common mode surge test
Hot pluggable capable
4 pole contacts
Port 1(Brown):24Vdc
Port 2(Gray):DALI (or DALI based protocol)-/common groud
Port 3(Blue):DALI (or DALI based protocol)+
Port 4(Black):General I/O
MECHANICAL
Mounting:M20X1.5 thread
Height above luminaire:10mm
Wires: AWM1015,20AWG,6"(120mm)
IP66
Receptacle:Ф30mm
Gasket:Ф36.5mm
Thread length:18.5mm
IK09 capable
APPLICATIONS
Street and Area Lighting
Outdoor Luminaires- Wall Packs-Parking Lots- Walkways
Photo Controls
Central Management System
Other sensor modules e.g. occupancy, remote


The difference in structural parts allows the Zhaga interface to be installed in any direction
Any installation direction, Zhaga interface can meet the protection level above IP65
Facilitates the application under different mains voltage conditions worldwide
Because of its small size, easy installation, and omnidirectional high IP rating
Make Zhaga products suitable for almost any standard interface lighting application
