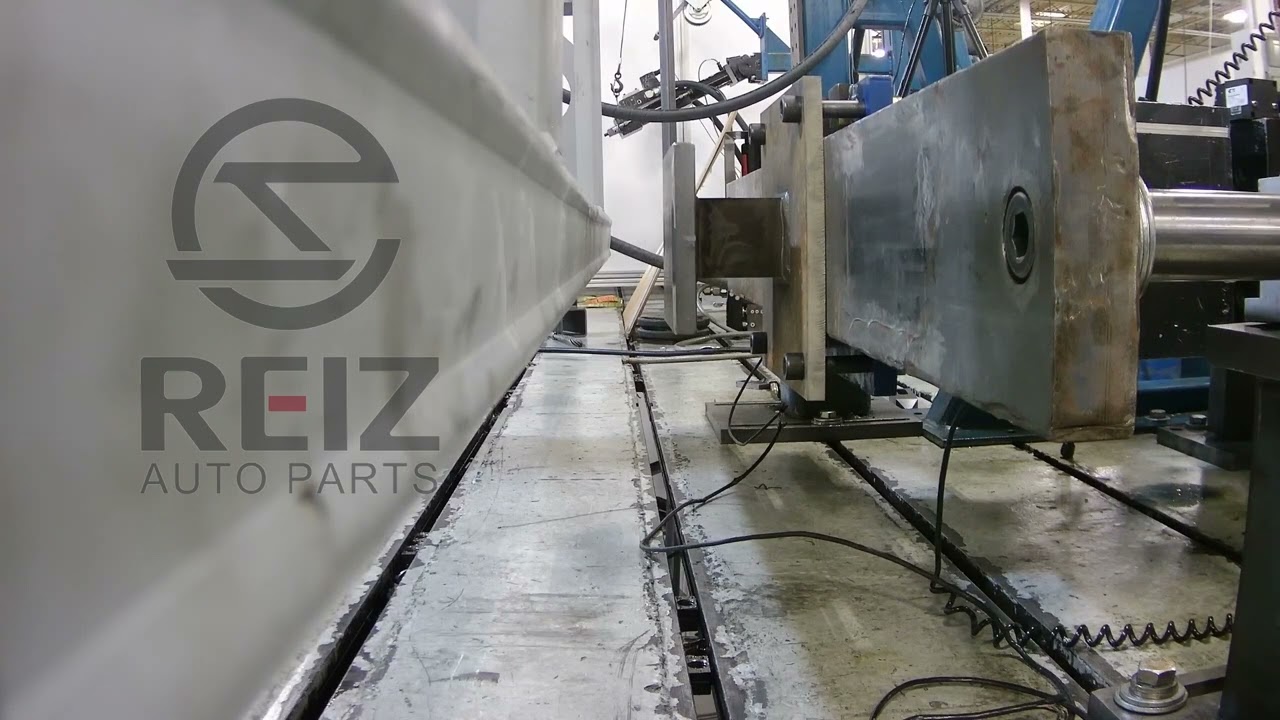

The objective of this test was to evaluate the functionality and durability characteristics of the sample system when subjected to extended simulated customer usage as specified by FMVSS 223 & CMVSS 223.

Equipment The following instrumentation was used to perform this test. All equipment and data has been calibrated by a source traceable to the National Institute of Standards and Technology (NIST). Calibration certificates can be furnished upon request

This procedure provides requirements for compliance testing of rear impact guards for trailers and semitrailers to FMVSS 223 & CMVSS 223. Each guard is required to meet the following requirements:
A. Cross Sectional Vertical Height - The horizontal member of each guard is
required to have a cross sectional vertical height of at least 100 mm at any
point across the guard width.
B. Strength and Energy Absorption - Each guard is required to comply with
the strength requirements at each test location and the energy absorption
requirements at either test location P3 when tested under the procedures of
S6 of S223.
Guard Strength
The guard must resist the following force levels without deflecting by more
than 125 mm.
(1) A force of 50,000 N at test location P1 on either the left or right side of
the guard.
(2) A force of 50,000 N at test location P2.
(3) A force of 100,000 N at test location P3 on either the left or the right
side of the guard.
