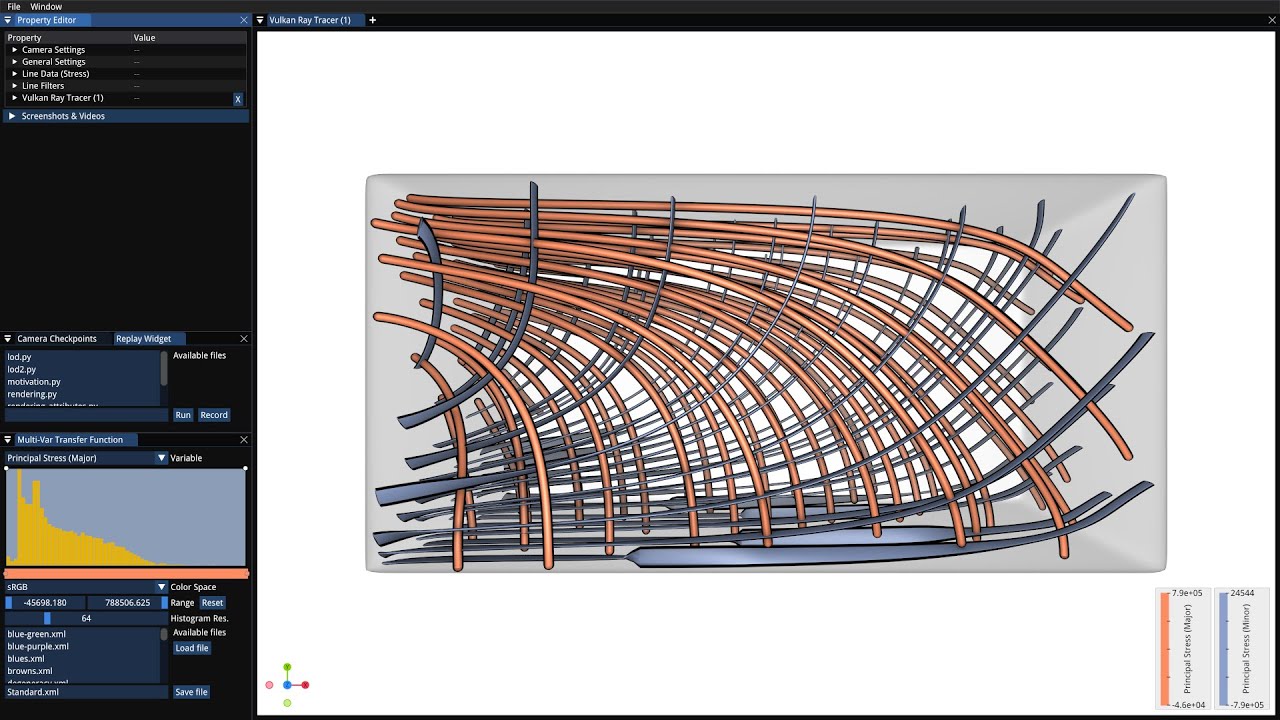

Demonstration of how to load external principal stress line (PSL) data files in the frontend of the 3D Trajectory-based Stress Visualizer (https://github.com/Junpeng-Wang-TUM/3.... The 3D Trajectory-based Stress Visualizer (3D-TSV) is a visual analysis tool for the exploration of the principal stress directions in 3D solids under load.

3D-TSV can be used as a client-server system, where the MatLab-based backend server runs in the background and answers requests from the C++/OpenGL-based frontend (see    • 3D-TSV System Overview  ). This video demonstrates how the frontend can be used standalone to read arbitrary PSL data files. This enables the frontend to work together with any other backend, which can be used to generate PSLs and then let the frontend visualize them.

This video was created for the paper "3D-TSV: The 3D Trajectory-based Stress Visualizer" by Junpeng Wang, Christoph Neuhauser, Jun Wu, Xifeng Gao and Rüdiger Westermann, which was submitted to the journal "Advances in Engineering Software", also available on arXiv (2112.09202)
