Скачать или смотреть How The Spout Pouch Machine Work For 50ml Sucked Jelly?

spout pouch machine,stand up spout pouches filling machine,spout pouch filling machine debugging video

Web: www.gdyuesen.com
Email: [email protected]
Whatsapp: +86-13068915181

Introduction

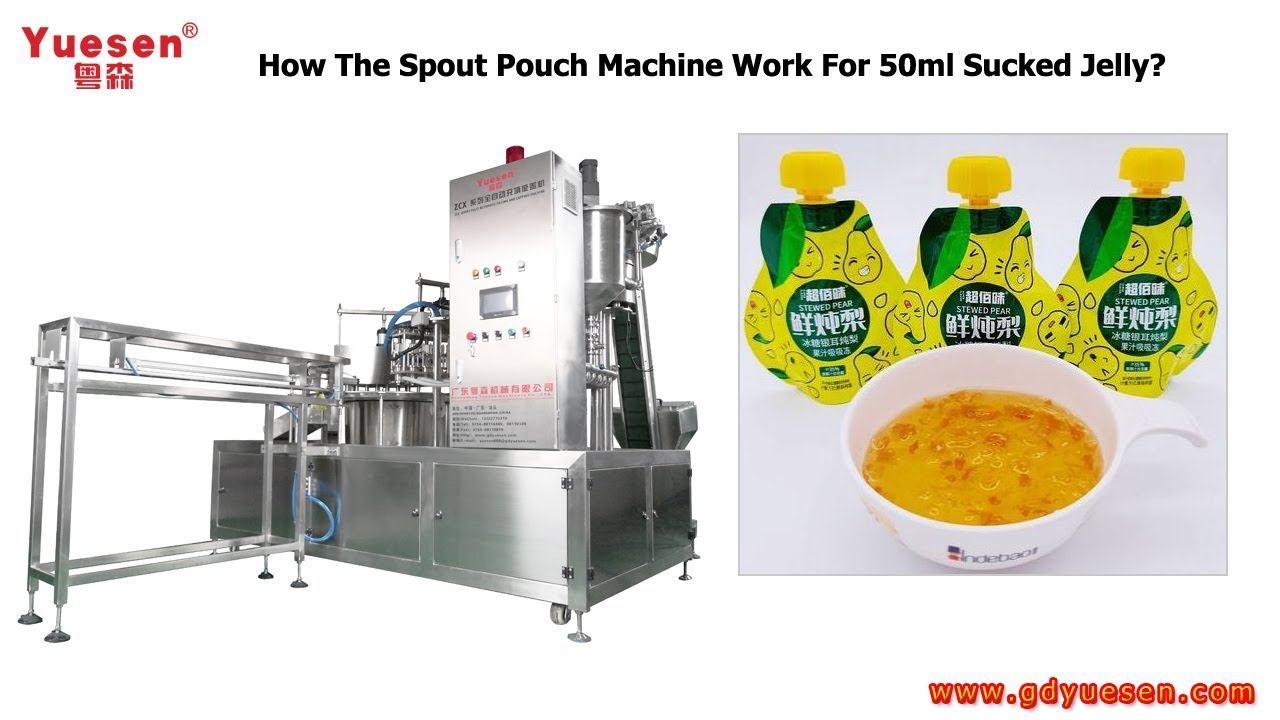

For this ZCX-8A spout pouch filling machine debugging video, it is taken on September 2nd 2022, this spout pouch machine is customized product by one of jelly products customer from China, equipped with 8 pcs of filling peaks/servo filling and capping system/agitator system/plastic cap elevator.This model of stand up spout pouches filling machine is suitable for the production of 50ml sucked jelly, the max filling and capping speed is 11500 pouch per hour.

Feature
-This model of spout pouch machine is widely used for a variety of products, such as jelly, milk, butter, fruit juices, paste, chemical liquid, water and so on.
-The filling volume and capping torque power is setting up by the individual servo system, more hygiene and easier operation.
-Accurate and smooth rotary table motion.
-No pouch - no fill and no cap – no discharge safety features.
-Completely wash down safe, stainless steel and engineering plastics construction.
-According to customer demand, we can increase or decrease machine component, such as dust proof cover, CIP clean system, plastic cap elevator and etc.
-Quality and commonly pneumatic and electrical components chosen from well reputed international companies.
-User friendly setting done via touch-screen, optional Multi language for chosen.

Technical Parameters
Filling material: Sucked jelly
Filling capacity: 50ml
Quantity of filling nozzle: 8
Filling and capping speed (pouch/hour): 11500
Material of machinery: # 304
Power supply: AC 380V /50Hz
Using air pressure: 0.5～0.7Mpa
Maximum air consumption: 0.5m3/min
Total power: 2.5KW
Weight of machine: 2T
Machine dimension: 3300*2440*1900mm(included the pouch loader)

Application pouch style
Spout pouch

Section of video ZCX-8A spout pouch machine
-Equipment appearance 00:00
-Pouch loading 01:29
-Fixed position filling/Pouch spout cleaning 01:41
-Pouch cap feeding/Pouch cap locking 02:01
-Pouch discharging 02:44

Detailed information about ZCX-8A spout pouch machine: http://www.gdyuesen.com/doy-pack-mach...
Relative product model: http://www.gdyuesen.com/spout-pouch-f...

#spoutpouchmachine
#standupspoutpouchesfillingmachine
#spoutpouchfillingmachinedebuggingvideo
#spoutmachinebag
#spoutbagpackingmachine
#spoutpouchespackingmachines
#standuppouchfillingandcappingmachine
#liquidstanduppouchfillingmachine
#spoutpouchfillingmachine
#honeyspoutpouchmachine
#spoutpouchfillingmachinesuppliers
#juicedoypackpackagingmachine
#highspeeddoypackpackagingmachine
#doybagfilling

If you have any doubt or questions about our ZCX-8A, please contact us by [email protected] or whatsapp(+86-13068915181)
