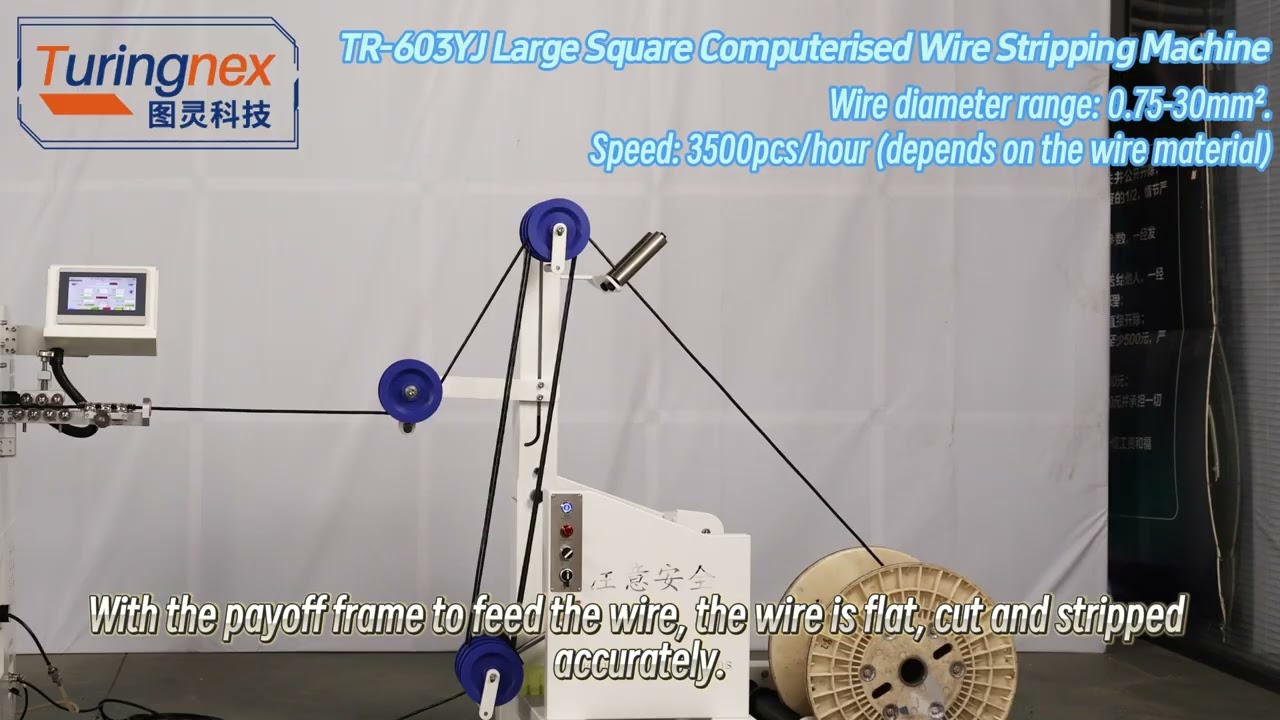

Скачать или смотреть TR 603YJ Large Square Computerised Wire Stripping Machine

Display: 7-inch man-machine interface
Function: single-core wire, multi-core cable, shielded cable, fully automatic fixed-length cutting, stripping
Type of conductor: single-core wire, multi-core cable, shielded cable, wire, PVC, etc.
Processing range: 0.75 -- 30 square
Cutting length: 1mm-999999.99mm
Cutting tolerance: 0.002*L or less (L=cutting length)
Stripping length: front end: 1-200mm, front end half stripping 1-1500mm Back end full stripping: 1-100mm, back end half stripping Allowable through diameter Φ18 Knife material High quality imported high speed steel Stripping length: front end full stripping: 1-200mm , front end half stripping 1-1500mm
back end full stripping: 1-100mm , back end half stripping 1-300mm
Maximum diameter allowed to pass through: Φ18
Knife material: high quality imported high-speed steel
Productivity: 3500 PCS/hour (according to the length of the line, the size of the decision)
Driving mode: 16-wheel drive (feeding stepping motors, knife frame servo motors); optional servo Feeding
Feeding method: belt feeding, cable without embossing marks and scratches. (with stripping and pressurising function)
Lifting operation mode: digital adjustment of the height of the pressure wheel
Power supply: AC220V 50/60Hz; optional 110V 50/60Hz
Air source: 0.5Mpa clean air source
Dimensions: 707*590*1140mm
Net weight: 140 kg

#WireStripper #automationsolutions #cableprocessing #SmartManufacturing #messystem

Turing Automation Technology is a high-tech enterprise integrating the R&D, manufacturing, sales and service of new wire harness processing equipment such as automated wire harness machines, stripping machines, and wire harness machines. Turing products have been widely used in new energy vehicles, Aerospace, data transmission, medical equipment, industrial electronics, home appliances and other fields.
