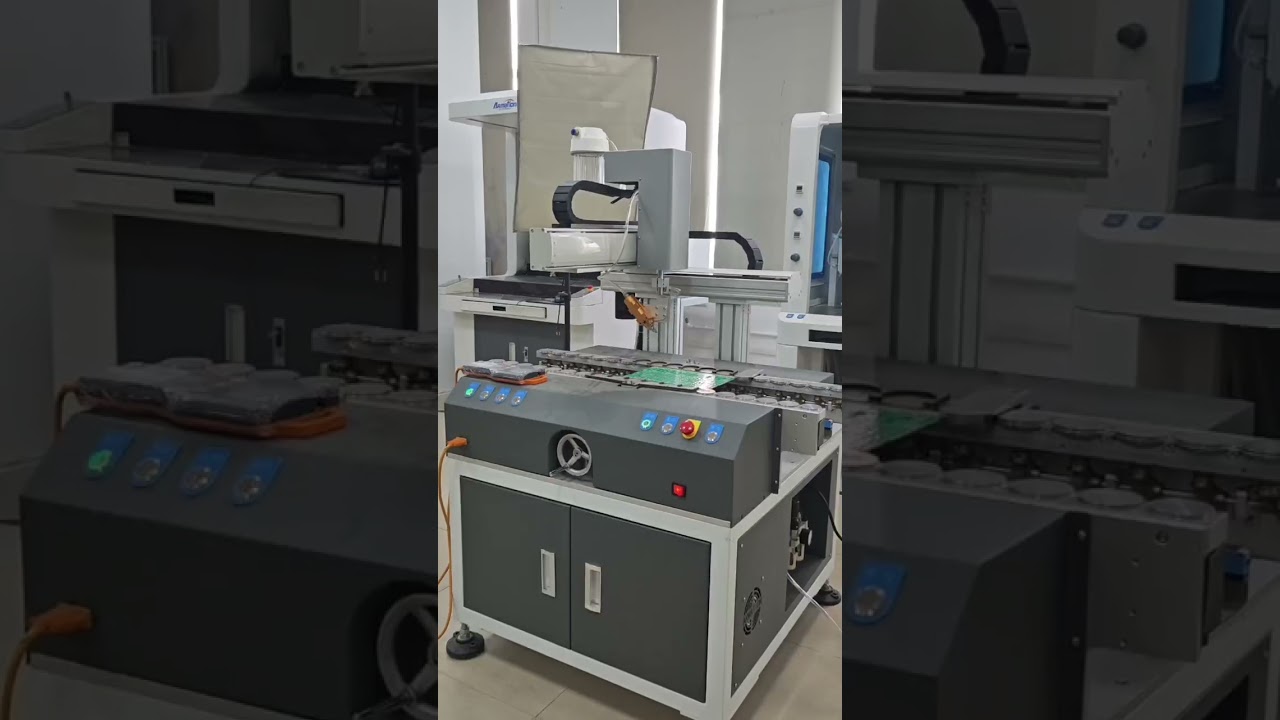

Machine Description:
1. Operation method: manually place the PCB board on the fixture of the foot shearing machine, and the equipment starts to cut the feet according to the path points programmed by Xiamen Yirongxin Electromechanical Equipment Co., Ltd. (the cut parts feet are automatically collected by the vacuum device at the same time). When the foot shearing machine completes the foot shearing of the product, the product conveyor automatically senses and conveys it to the next process position, and waits for the corner shearing product to arrive at the fixture at the same time, and starts corner shearing. This cycle of operation, the operator only needs to load the material. 2. Structure: Adopting platform-type three-dimensional structure;
3. PCB board size range: 200MM*350MM (the fixture device can be adjusted according to the size of the product)
4. Applicable industries: Mainly applicable to power board PCB industry circuit boards, power board PCB board soldering
After the component pins are cut, the products that need selective pin cutting, tungsten steel alloy scissors are durable and efficient, the scissor head rotates 360 degrees, and you can choose the right angle to avoid product components for corner cutting,
avoid damage to components,
5. Features: After the pins are cut, the length of the pins can be controlled separately, and the vacuum suction device sucks away the waste after the corners are cut.
6. Pin cutting speed: an average of 0.3s per pin, about 8,000 pins per hour, and about 25s-30s for a board.
7. This equipment uses a handheld teaching pendant machine interface that is simple and easy to use, and the operation is faster and easier.

机台描述：
1.操作方式:人工将 PCB 板子放置到剪脚机的待料夹具位上，设备按
厦门亿荣昕机电设备有限公司
编好的路径点位开始剪脚(剪下的零 件脚同时被真空装置自动收集)，
当剪脚机完成剪脚产品后产品输送台自动感应输送至下一工序位，等
待剪角产品同时到位至待料夹具，开始剪角，如此循环作业，操作员
只需上料。
2.结构:采用平台式三维立体式结构;
3. PCB 板尺寸范围 :200MM*350MM（夹具装置根据产品大小可调
节）
4.适用行业:主要适用于电源板 PCB 行业线路板，电源板 PCB 板焊
锡后元件剪脚，需要选择性剪脚的产品，钨钢合金剪刀经久耐用效率
高，剪刀头 360 度旋转，可以选择合适角度躲避产品元器件进行剪角，
避免伤害元器件，
5.特点:剪脚后引脚长短可单独控制，剪角后真空吸料装置吸走废料。
6.剪脚速度：平均 0.3s 一个脚，每小时约 8000 个脚，一块板约 25s-30s。
7.本设备采用手持示教器机界面操作简单易上手，操作更快捷简便
